Triad Elite Frameset Triathlon Racing Bike

Triad Elite Frameset Triathlon Racing Bike

3,000.00

The ELITE is the latest and most aerodynamic successor of the TRIAD line of triathlon and time trial bicycles from BLUE. It employs carbon fiber SFT2 Super Flow Tube Technology in which the fork, down tube and seat stay cross sections are oriented to the direction the wind flows across bike for increased aerodynamics.  For a perfect fit it features precision sliding position seat post, shorter top tube and taller head tube to open up your hip angle and be more efficient for the run.

It can be equipped with the all new top of the line SRAM eTap wireless shifting, Shimano Dura-Ace Di2 or Shimano Ultegra Di2 with electronic shifting for the ultimate in speed and performance. Get the same high performance frame and fork with Shimano 105 mechanical shifting for a lower cost alternative.

  • Aero Fork with removable nose cone to hide front brake from the wind and a full-carbon steerer tube

  • Internal Cable Routing to hide cables within the frame for sleek appearance and reduced wind drag

  • Di2 battery conceals within seat post to keep clean lines and maintain aerodynamics.

  • Electronic junction box can be hidden in aero front nose cone.

  • Drop Down Tube design for improved aerodynamic interface between front wheel, fork and down tube

  • Power-Arc curved chain stays create a wind shadow for rear cassette & derailleur

  • Bento Box taps on top tube with included storage box

Size:
Color:
Quantity:
Add To Cart

Triad Elite - Frameset (Frame, Fork, Brakes F&R, Headset, Seat post and Stem)

  •  Frame and Fork: BLUE-TECH High Modulus T-800 UD Carbon Fiber
  •  Aero Covers:  Triad Elite Front Fork/Headtube Aero Cone, Bottom Bracket Aero Cover
  •  Brakes: FSA Vision Aero Center Pull
  •  Headset: FSA 1 1/8" x 1 1/2" with Carbon Top Cover
  •  Seat post: Aerus Carbon Slide Adjustment Position
  •  Stem: Aerus FA-Aero with Adjustable Height Spacers

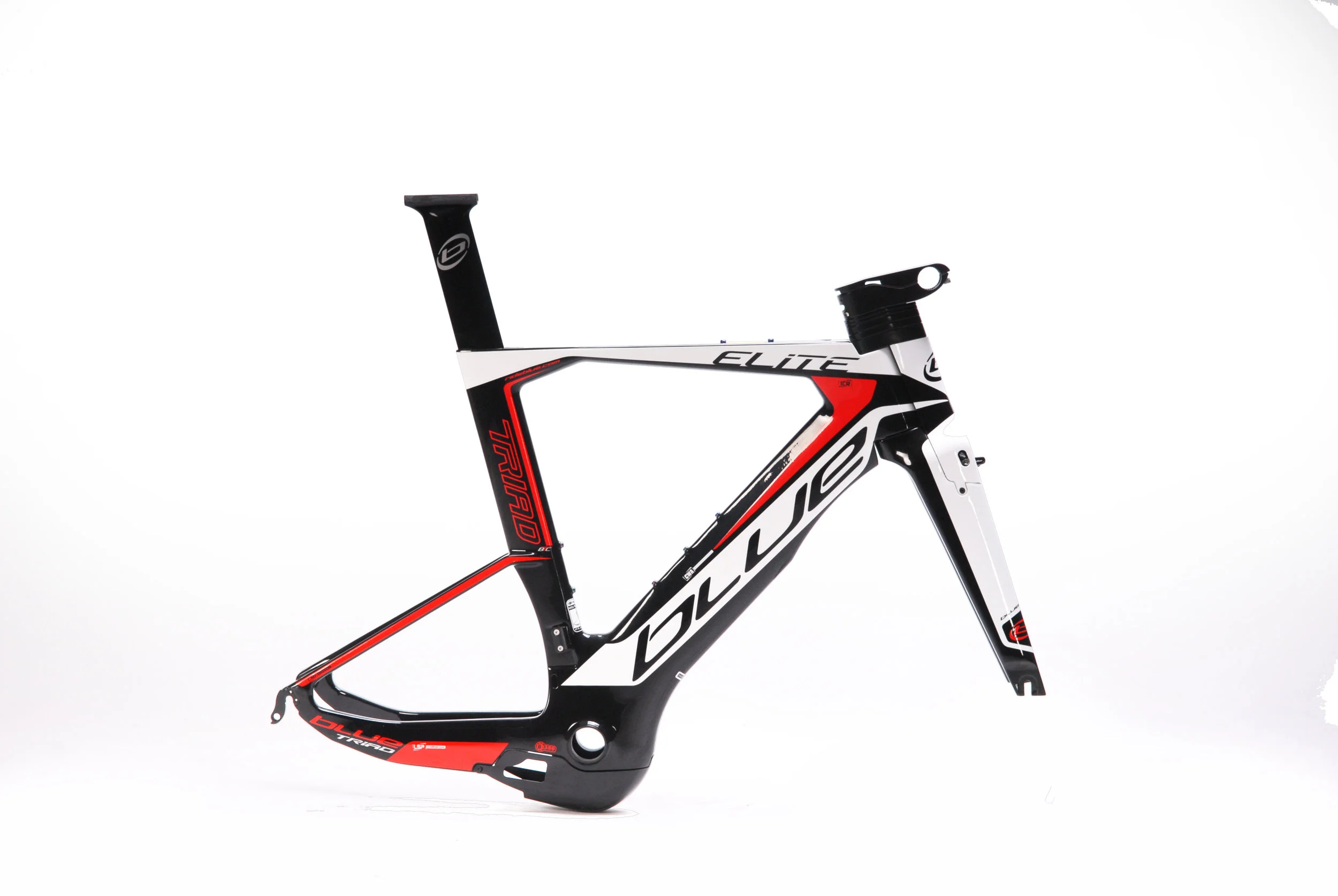

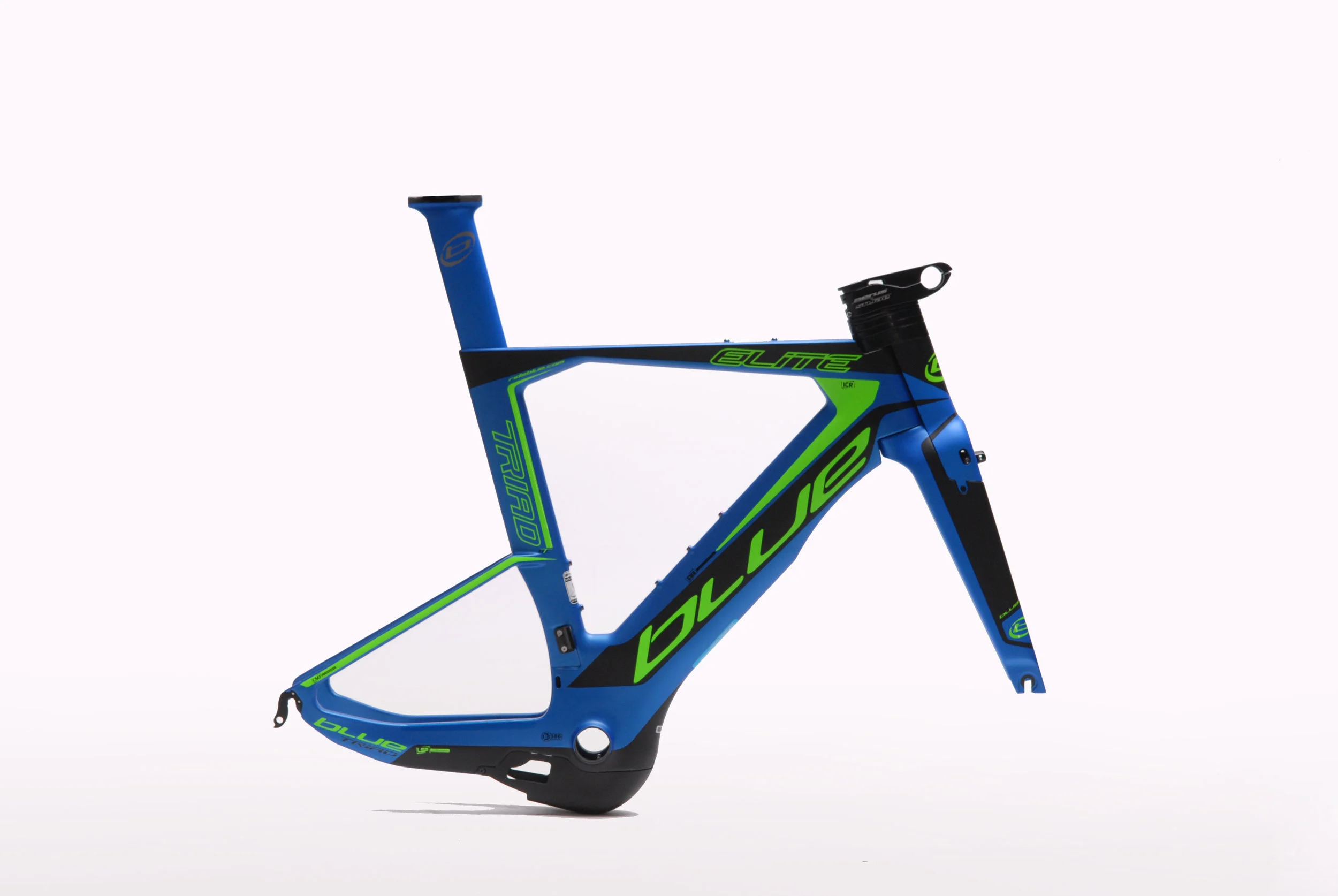

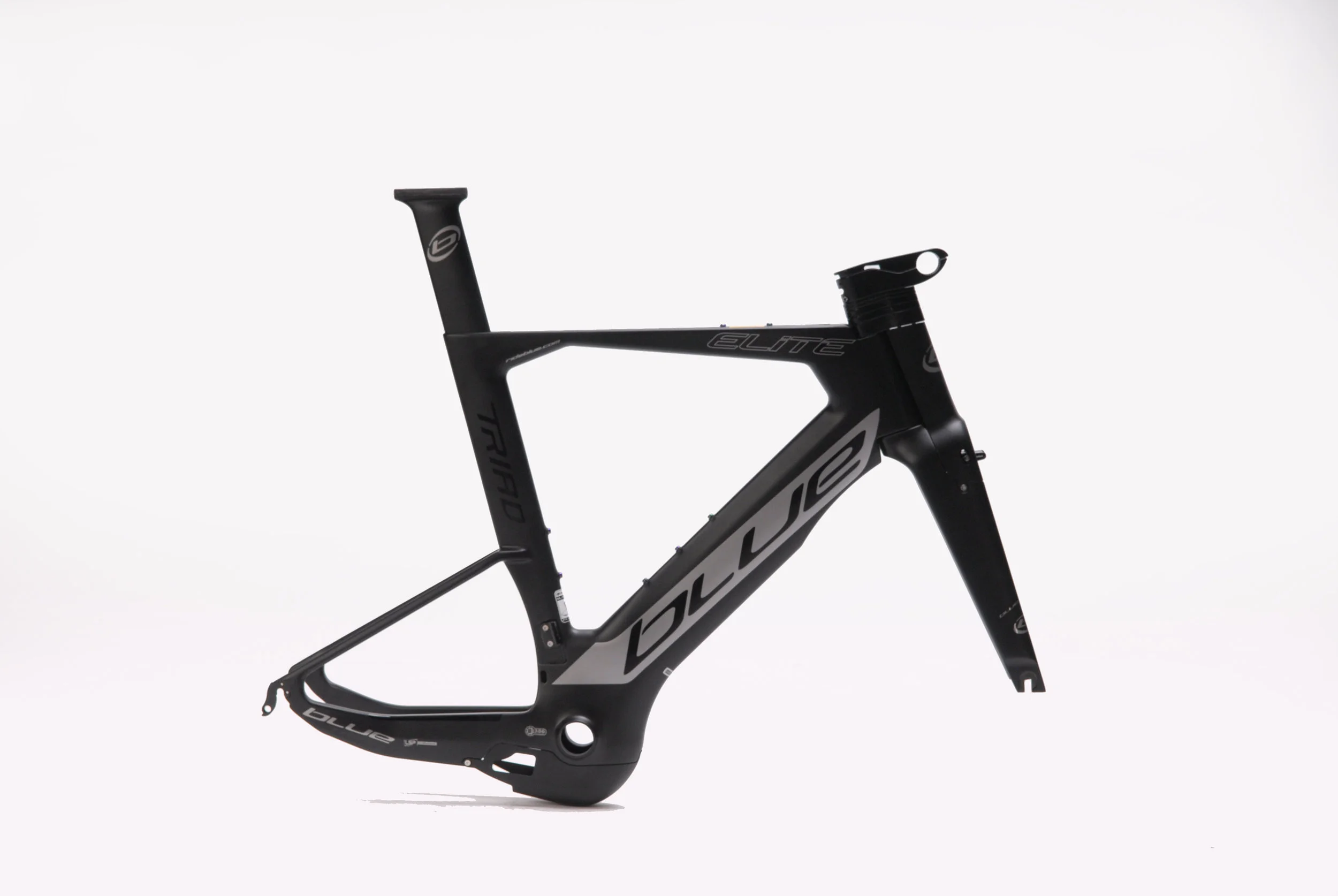

Check out the available color options below. The first color listed is the main frame color and the second color is the BLUE decals color. For example Blue/Green is a primarily a Blue frame with Green decals. Actual frameset colors purchased may vary from the photos as designs change over time.

Frame Geometry



To select the right size it is recommended you compare your current bicycle frame geometry to the ones shown for this bicycle.  Variances of a few cm can make a big difference in how it fits.  To get a perfect fit or if this is your first bicycle of this type a bike shop can be a big help in determining what dimensions fit your specific body best.

Below are some general guidelines on sizes to get you started in determining the right one for you.  If you have questions about the sizing please send us an email to sales@rideblue.com

XS - Heights 5'2" to 5'6"

SM - Heights 5'6" to 5'9"

MD - Heights 5'9" to 5'11"

ML - Heights 5'11" to 6'1"

LG - Heights 6'1" to 6'3"
